Chinese Standard Rolling Stock Cables

• Super-thin Wall ScreenedMulticore Cables
  DT-RFPE 750V

Application :

• -Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where
  handling and installation cost are an important factor.
  -Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

Construction :

• Conductors	Tinned copper wires
  Insulation	Electron beam crosslinkable LSZH compound
  Screen	Tinned copper wire braid
  Sheath	TPU plastic sheath

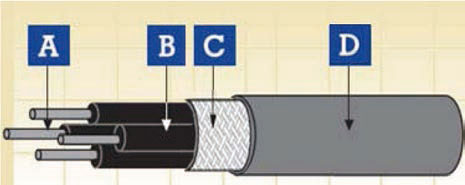

  • A. Conductor             B. Insulation             C. Screen             D.Sheath

  Electrical & Mechanical Properties :

• Nominal Voltage	750V
  Short Circuit Temperature (5s)	250°C
  Operating Temperature	-60°C/+125°C
  Minimum Bending Radius	3 x Overall Diameter (OD≤20mm); 5 x Overall Diameter (OD≥20mm)

Fire Performance :

• Flame Retardant	GB 12666-90 DZ-1
  Low Corrosivity (Acidity & Conductivity)	GB/T17650.1-1998; GB/T17650.2-1998
  Halogen Free	GB/T17650.1-1998; GB/T17650.2-1998
  Low Smoke	GB/T17651.1-1998; GB/T17651.2-1998

DT-RFPE 750V :

• Number of conductor×Nominal Cross-Sectional Area	Conductor Construction	Maximum Overall Diameter	Weight	Maximum Conductor Resistance 20°C
  mm²	No/mm	mm	kg/km	Ω/km
  2×0.5	19/0.18	4.10	47.50	40.1
  3×0.5	19/0.18	4.23	57.50	40.1
  4×0.5	19/0.18	4.84	70.00	40.1
  5×0.5	19/0.18	5.06	84.10	40.1
  6×0.5	19/0.18	5.20	93.00	40.1
  7×0.5	19/0.18	5.34	103.00	40.1
  8×0.5	19/0.18	6.20	116.50	40.1
  2×0.75	19/0.23	4.38	54.00	26.7
  3×0.75	19/0.23	4.95	70.55	26.7
  4×0.75	19/0.23	5.40	83.50	26.7
  5×0.75	19/0.23	5.80	100.25	26.7
  6×0.75	19/0.23	6.00	115.25	26.7
  7×0.75	19/0.23	6.39	130.00	26.7
  8×0.75	19/0.23	7.00	144.50	26.7
  2×1.0	19/0.26	4.62	60.50	20.0
  3×1.0	19/0.26	5.24	80.50	20.0
  4×1.0	19/0.26	5.75	96.57	20.0
  5×1.0	19/0.26	6.20	115.26	20.0
  6×1.0	19/0.26	6.50	134.00	20.0
  7×1.0	19/0.26	6.84	153.55	20.0
  8×1.0	19/0.26	7.60	168.35	20.0
  2×1.5	19/0.32	5.25	77.50	13.7
  3×1.5	19/0.32	6.12	98.50	13.7
  4×1.5	19/0.32	6.38	121.60	13.7
  5×1.5	19/0.32	7.20	145.00	13.7
  6×1.5	19/0.32	7.80	169.95	13.7
  7×1.5	19/0.32	8.04	192.00	13.7
  8×1.5	19/0.32	8.70	212.50	13.7
  2×2.0	19/0.37	6.34	86.50	10.0
  3×2.0	19/0.37	6.65	118.30	10.0
  4×2.0	19/0.37	7.38	151.50	10.0
  5×2.0	19/0.37	8.38	184.90	10.0
  6×2.0	19/0.37	8.89	218.60	10.0
  7×2.0	19/0.37	9.10	248.40	10.0
  8×2.0	19/0.37	9.80	282.10	10.0
  2×2.5	19/0.41	6.84	97.50	8.21
  3×2.5	19/0.41	7.40	134.00	8.21
  4×2.5	19/0.41	8.30	165.00	8.21
  5×2.5	19/0.41	9.30	196.80	8.21
  6×2.5	19/0.41	10.01	238.20	8.21
  7×2.5	19/0.41	10.50	276.90	8.21
  8×2.5	19/0.41	11.50	320.00	8.21
  2×4.0	19/0.52	7.94	133.50	5.00
  3×4.0	19/0.52	8.45	185.65	5.00

Corona Resistant	Highly Flexible	UV Resistant	Ozone Resistant	Abrasion Retardant	Cold- resistant

Resistance To Soldering Heat	Acid&Alkaline Resistant	IRM 903 Fuel Oil Resistant	IRM 902 Mineral Oil Resistant	Fire Retardant NF C32-070-2.2(C2) IEC60332-3-24/EN50266-2-4	Flame Retardant NF C32-070-2.1(C1) IEC60332-1-2/EN50265-2-1

Low Toxicity NF X70-100/NF F63 808 TM1-04/BS 6853	Low Corrosivity IEC60754-2/EN50267-2-2/3 NF C32-074/VDE 0472-813	Low Smoke Emission IEC 61034-2 / EN 50268-2 NF C32-073/VDE 0472-816	Zero Halogen IEC 60754-1/EN 50267-2-1 NF C32-074//VDE 0472-815
