High Temperature cables according to EN 50382
- FIREROL High Temperature Single Core Sheathed Cables 1.8/3 kV or 3.6/6 kV
EN 50382-2 (FRL-HT-3S, FRL-HT-6S)
Construction :
-
Conductor Flexible tinned annealed copper wires(red copper only for 150° C core temperature)class 5 according to HD 383 Insulation Silicon rubber according to EN 50382-1 (EI 112) Outer sheath LSZH elastomeric compound according to EN 50382-1 (EM 105, EM 106 or EM 107) -

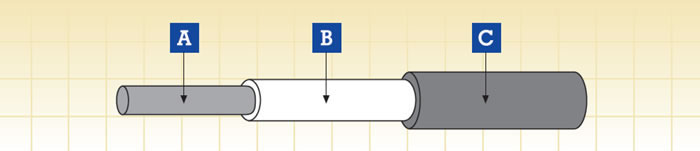

A. Conductor B. Insulation C. Sheath
Electrical & Mechanical Properties :
-
Nominal Voltage 1.8/3 kV or 3.6/6 kV Maximum Conductor Temperature 90°C (fixed installation) Minimum Permissible Ambient Temperature -25/-40°C (fixed installation) Bending Radius 3 x Overall Diameter (D<12mm); 4 x Overall Diameter (D>12mm)
Chemical & Environmental Properties :
-
EN 60684-2 No fluorine EN 50305; EN 60811-2-1 Resistance to mineral oil & fuel oil, acid & alkali EN 50305 Resistance to ozone
Fire Performance for rolling stock application :
-
EN 50306-2 Hazard levels HL1, HL2/HL3, HL4 DIN 5510-2 Protection level 1/2/3/4 BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II NF F 16-101 F0 EN45545-2 R15 Interior/ R16 Exterior HL1, HL2, HL3
Fire Performance in General :
-
EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulated wire or cable EN 50266-2-4 + EN 50305; IEC 60332-3-24;
NF C 32-070 2.2 (C1); VDE 0472 Teil 804Vertical flame spread of vertically mounted bunched wires or cables EN 50268-2; IEC 61034-2; NF C 32-073 ;
NF C 20-902; NF F 16 101; VDE 0472 Teil 816Low Smoke Emission EN 50267-2-1; IEC 60754-1; NF C 32-074;
NF C 20-454; VDE 0472 Teil 815Halogen Free EN 50267-2-2/3; IEC 60754-2; NF C 32-074;
NF C 20-453; VDE 0472 Teil 813
Low Corrosivity (Acidity & Conductivity) EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 Low Toxicity NF F 63 808; BS6853; NF F 16 101 Smoke index EN45545 -2 Requirement for fire behavior of materials & components R15/R16
FRL-HT-3S 1.8/3 kV :
-
Nominal
Cross-
Sectional
AreaConductor
Diameter
(a)Min. Mean
Thickness
of InsulationMin.
Average
Sheath
ThicknessOverall Diameter Weight Conductor Resistance Insulation Resistance min max Tinned Conductor Plain Conductor 20°C 20°C 20°C 150°C mm2 n X mm mm mm mm mm kg/km MΩ x km MΩ x km MΩ x km MΩ x km 1.5 1.5 1.3 1.4 6.8 7.9 70 13.7 13.3 670 1.30 2.5 1.95 1.3 1.4 7.2 8.4 80 8.21 7.98 570 1.10 4 2.5 1.3 1.4 7.7 9.0 100 5.09 4.95 480 0.90 6 3.0 1.3 1.4 8.2 9.6 120 3.39 3.30 420 0.80 10 3.9 1.5 1.4 9.4 11.0 190 1.95 1.91 380 0.70 16 5.0 1.5 1.4 10.5 12.2 240 1.24 1.21 310 0.60 25 6.4 1.8 1.4 12.3 14.4 340 0.795 0.780 300 0.60 35 7.7 1.8 1.4 13.6 15.9 440 0.565 0.554 250 0.50 50 9.2 1.8 1.4 15.0 17.5 580 0.393 0.386 220 0.40 70 11.0 1.8 1.5 16.8 19.7 780 0.277 0.272 200 0.40 95 12.5 2.2 1.5 19.0 22.2 1020 0.210 0.206 190 0.40 120 14.2 2.2 1.6 20.8 24.3 1270 0.164 0.161 180 0.30 150 15.8 2.2 1.6 22.3 26.1 1560 0.132 0.129 160 0.30 185 17.5 2.4 1.7 24.5 28.6 1890 0.108 0.106 160 0.30 240 20.1 2.4 1.8 27.1 31.7 2480 0.0817 0.0801 140 0.20 300 22.5 2.4 1.9 29.5 34.6 2990 0.0654 0.0641 120 0.20 400 25.8 2.6 2.0 33.2 38.9 4010 0.0495 0.0486 120 0.20
FRL-HT-6S 3.6/6 kV :
-
Nominal
Cross-
Sectional
AreaConductor
Diameter
(a)Min. Mean
Thickness
of InsulationMin.
Average
Sheath
ThicknessOverall Diameter Weight Conductor Resistance Insulation Resistance min max Tinned Conductor Plain Conductor 20°C 20°C 20°C 150°C mm2 n X mm mm mm mm mm kg/km MΩ x km MΩ x km MΩ x km MΩ x km 2.5 1.95 2.6 1.4 9.9 11.6 130 8.21 7.98 870 1.70 4 2.5 2.6 1.4 10.4 12.2 150 5.09 4.95 750 1.50 6 3.0 2.6 1.4 10.9 12.8 180 3.39 3.30 670 1.30 10 3.9 2.6 1.4 11.8 13.8 240 1.95 1.91 570 1.10 16 5.0 2.6 1.4 12.8 15.0 300 1.24 1.21 480 0.90 25 6.4 2.9 1.4 14.7 17.2 410 0.795 0.780 430 0.80 35 7.7 2.9 1.4 15.9 18.6 510 0.565 0.554 380 0.70 50 9.2 2.9 1.5 17.5 20.5 660 0.393 0.386 330 0.60 70 11.0 2.9 1.5 19.2 22.4 870 0.277 0.272 280 0.50 95 12.5 2.9 1.6 20.8 24.3 1100 0.210 0.206 250 0.50 120 14.2 2.9 1.6 22.4 26.2 1330 0.164 0.161 230 0.40 150 15.8 2.9 1.7 24.1 28.2 1640 0.132 0.129 210 0.40 185 17.5 3.2 1.8 26.4 30.9 1990 0.108 0.106 210 0.40 240 20.1 3.4 1.9 29.4 34.4 2620 0.0817 0.0801 190 0.30 300 22.5 3.4 1.9 31.7 37.1 3120 0.0654 0.0641 170 0.30 400 25.8 3.4 2.0 35.0 40.9 4150 0.0495 0.0486 150 0.30 - (a)= For information,indicative only
 |
 |
 |
|
 |
 |
Impact Resistant |
Highly Flexible |
UV Resistant |
Ozone Resistant | Abrasion Retardant |
Cold- resistant |
|
 |
 |
|
 |
 |
Resistance To Soldering Heat |
Acid&Alkaline Resistant |
IRM 903 Fuel Oil Resistant |
IRM 902 Mineral Oil Resistant |
Fire Retardant NF C32-070-2.2(C2) IEC60332-3-24/EN50266-2-4 |
Flame Retardant NF C32-070-2.1(C1) IEC60332-1-2/EN50265-2-1 |
 |
|
|
 |
Low Toxicity NF X70-100/NF F63 808 TM1-04/BS 6853 |
Low Corrosivity IEC60754-2/EN50267-2-2/3 NF C32-074/VDE 0472-813 |
Low Smoke Emission IEC 61034-2 / EN 50268-2 NF C32-073/VDE 0472-816 |
Zero Halogen IEC 60754-1/EN 50267-2-1 NF C32-074//VDE 0472-815 |
