High Temperature cables according to EN 50382
- FIREROL High Temperature Single core cables with Reinforced Insulation 3.6/6 kV
EN 50382-2 (FRL-HT-6SURI)
Construction :
-
Conductor Extra flexible tinned annealed copper wires(red copper only for 150°C core temperature)class 6 according to HD 383 Insulation Silicon rubber according to EN 50382-1 (EI 112) -

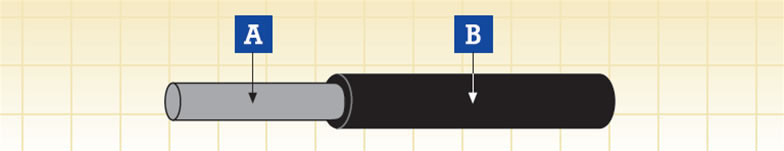

A. Conductor B. Insulation
Electrical & Mechanical Properties :
-
Nominal Voltage 3.6/6 kV Maximum Conductor Temperature 120°C /150°C (fixed installation) Minimum Permissible Ambient Temperature -25°C/-40°C (fixed installation) Bending Radius 3 x Overall Diameter (D<12mm); 4 x Overall Diameter (D>12mm)
Chemical & Environmental Properties :
-
EN 60684-2 No fluorine EN 50305; EN 60811-2-1 Resistance to mineral oil & fuel oil, acid & alkali EN 50305 Resistance to ozone
Fire Performance for rolling stock application :
-
EN 50306-2 Hazard levels HL1, HL2/HL3, HL4 DIN 5510-2 Protection level 1/2/3/4 BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II NF F 16-101 F0 EN45545-2 R15 Interior/ R16 Exterior HL1, HL2, HL3
Fire Performance in General :
-
EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulated wire or cable EN 50266-2-4 + EN 50305; IEC 60332-3-24;
NF C 32-070 2.2 (C1); VDE 0472 Teil 804Vertical flame spread of vertically mounted bunched wires or cables EN 50268-2; IEC 61034-2; NF C 32-073 ;
NF C 20-902; NF F 16 101; VDE 0472 Teil 816Low Smoke Emission EN 50267-2-1; IEC 60754-1; NF C 32-074;
NF C 20-454; VDE 0472 Teil 815Halogen Free EN 50267-2-2/3; IEC 60754-2; NF C 32-074;
NF C 20-453; VDE 0472 Teil 813
Low Corrosivity (Acidity & Conductivity) EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 Low Toxicity NF F 63 808; BS6853; NF F 16 101 Smoke index EN45545 -2 Requirement for fire behavior of materials & components R15/R16
FRL-HT-6SURI 3.6/6 kV :
-
(a)= For information,indicative onlyNominal
Cross-
Sectional
AreaConductor
Diameter
(a)Min. Mean
Thickness
of InsulationOverall Diameter Weight Conductor Resistance Insulation Resistance min max Tinned Conductor Plain Conductor 20°C 20°C 20°C 150°C mm2 n x mm mm mm mm kg/km MΩ x km MΩ x km MΩ x km MΩ x km 50 9.2 3.0 15.2 17.8 560 0.393 0.386 340 0.70 70 11.0 3.0 16.9 19.8 770 0.277 0.272 300 0.60 95 12.5 3.0 18.3 21.4 970 0.210 0.206 270 0.55 120 14.2 3.1 20.1 23.5 1200 0.164 0.161 250 0.50 150 15.8 3.1 21.6 25.3 1480 0.132 0.129 220 0.45 185 17.5 3.2 23.4 27.4 1800 0.108 0.106 210 0.40
 |
 |
 |
|
 |
 |
Impact Resistant |
Highly Flexible |
UV Resistant |
Ozone Resistant | Abrasion Retardant |
Cold- resistant |
|
 |
 |
|
 |
 |
Resistance To Soldering Heat |
Acid&Alkaline Resistant |
IRM 903 Fuel Oil Resistant |
IRM 902 Mineral Oil Resistant |
Fire Retardant NF C32-070-2.2(C2) IEC60332-3-24/EN50266-2-4 |
Flame Retardant NF C32-070-2.1(C1) IEC60332-1-2/EN50265-2-1 |
 |
|
|
 |
Low Toxicity NF X70-100/NF F63 808 TM1-04/BS 6853 |
Low Corrosivity IEC60754-2/EN50267-2-2/3 NF C32-074/VDE 0472-813 |
Low Smoke Emission IEC 61034-2 / EN 50268-2 NF C32-073/VDE 0472-816 |
Zero Halogen IEC 60754-1/EN 50267-2-1 NF C32-074//VDE 0472-815 |
