EN 50264 Medium Wall Power & Control Cable

• FIREROL Medium Wall Multi Core Overall Screened Cables 300/500 V or 0.6/1 kV
  EN 50264-3-2 (FRL-MW-05M-OS, FRL-MW-1M-OS)

APPLICATION

• -Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
• -Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

Construction :

• Conductor	Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5
  Insulation	LSZH elastomeric compound as defined in EN 50264-1 (EI 106 to EI 110)
  Overal screen	Tinned annealed copper wires
  Outer sheath	LSZH elastomeric compound as defined in EN 50264-1 (EM 101 to EI 104)

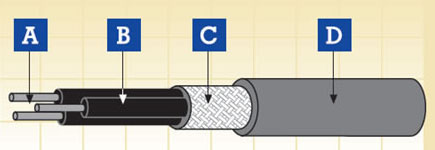

• A. Conductor             B. Insulation             C. Screen             D.Sheath

Electrical & Mechanical Properties :

• Nominal Voltage	300/500 V or 0.6/1 kV
  Maximum Conductor Temperature	90°C ( fixed installation )
  Minimum Permissible Ambient Temperature	-25°C/-40°C ( fixed installation )
  Bending Radius	10 x Overall Diameter

Chemical & Environmental Properties :

• EN 60684-2	No fluorine
  EN 50305; EN 60811-2-1	Resistance to mineral oil & fuel oil, acid & alkali
  EN 50305	Resistance to ozone

Fire Performance for rolling stock application :

• EN 50306-2	Hazard levels HL1, HL2/HL3, HL4
  DIN 5510-2	Protection level 1/2/3/4
  BS 6853	Interior use 1a, 1b, II; Exterior use 1a, 1b, II
  NF F 16-101	F0
  EN45545-2	R15 Interior/ R16 Exterior HL1, HL2, HL3

Fire Performance in General :

• EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)	Vertical flame propogation for a single insulated wire or cable
  EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804	Vertical flame spread of vertically mounted bunched wires or cables
  EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816	Low Smoke Emission
  EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815	Halogen Free
  EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813	Low Corrosivity (Acidity & Conductivity)
  EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853	Low Toxicity
  NF F 63 808; BS6853; NF F 16 101	Smoke index
  EN45545 -2	Requirement for fire behavior of materials & components R15/R16

FRL-MW-05M-OS 300/500 V :

• Nominal Cross- Sectional Area (a)	Conductor Diameter (b)	Min. Mean Thickness of Insulation	Core Dimensions		Min. Screen Wire Diameter	Min. Average Sheath Thickness	Overall Diameter		Weight	Conductor Resistance	Insulation Resistance
  											EI 110	EI 106 /7/8/9
  			Min.	Max.			min.	max.		20°C	20°C	20°C
  n x mm2	mm	mm	mm	mm	mm	mm	mm	mm	kg/km	Ω/km	MΩ x km	MΩ x km
  2x1	1.25	0.4	2.0	2.4	0.16	0.6	6.0	7.1	70	20.0	15.0	7.5
  4x1	1.25	0.4	2.0	2.4	0.16	0.7	7.0	8.2	110	20.0	15.0	7.5
  7x1	1.25	0.4	2.0	2.4	0.16	0.7	8.2	9.6	150	20.0	15.0	7.5
  9x1	1.25	0.4	2.0	2.4	0.21	0.8	10.2	11.9	220	20.0	15.0	7.5
  12x1	1.25	0.4	2.0	2.4	0.21	0.8	10.9	12.7	260	20.0	15.0	7.5
  19x1	1.25	0.4	2.0	2.4	0.26	1.0	13.2	15.4	400	20.0	15.0	7.5
  24x1	1.25	0.4	2.0	2.4	0.26	1.0	15.2	17.8	500	20.0	15.0	7.5
  32x1	1.25	0.4	2.0	2.4	0.26	1.0	16.6	19.4	610	20.0	15.0	7.5
  37x1	1.25	0.4	2.0	2.4	0.26	1.0	17.2	20.1	670	20.0	15.0	7.5
  40x1	1.25	0.4	2.0	2.4	0.26	1.2	18.2	21.3	740	20.0	15.0	7.5
  4x1.5	1.5	0.5	2.4	2.9	0.16	0.7	8.0	9.4	140	13.7	14.0	7.0
  7x1.5	1.5	0.5	2.4	2.9	0.21	0.7	9.6	11.3	220	13.7	14.0	7.0
  9x1.5	1.5	0.5	2.4	2.9	0.21	1.0	12.1	14.2	290	13.7	14.0	7.0
  12x1.5	1.5	0.5	2.4	2.9	0.21	1.0	13.0	15.2	360	13.7	14.0	7.0
  19x1.5	1.5	0.5	2.4	2.9	0.26	1.0	15.3	17.9	540	13.7	14.0	7.0
  24x1.5	1.5	0.5	2.4	2.9	0.26	1.2	18.1	21.2	700	13.7	14.0	7.0
  32x1.5	1.5	0.5	2.4	2.9	0.26	1.2	19.8	23.2	860	13.7	14.0	7.0
  37x1.5	1.5	0.5	2.4	2.9	0.26	1.2	20.5	24.0	960	13.7	14.0	7.0
  4x2.5	1.95	0.5	2.9	3.4	0.21	0.7	9.2	10.8	200	8.21	13.0	6.5
  7x2.5	1.95	0.5	2.9	3.4	0.21	0.8	11.1	13.0	310	8.21	13.0	6.5
  9x2.5	1.95	0.5	2.9	3.4	0.26	1.0	13.9	16.3	440	8.21	13.0	6.5
  12x2.5	1.95	0.5	2.9	3.4	0.26	1.0	15.0	17.5	520	8.21	13.0	6.5
  19x2.5	1.95	0.5	2.9	3.4	0.26	1.2	17.8	20.8	770	8.21	13.0	6.5
  24x2.5	1.95	0.5	2.9	3.4	0.26	1.2	20.6	24.1	970	8.21	13.0	6.5

• (a)= One earth conductor (green/yellow) can be included upon request
  (b)= For information,indicative only

FRL-MW-1M-OS 0.6/1 kV :

• Nominal Cross- Sectional Area (a)	Conductor Diameter (b)	Min. Mean Thickn ess of Insula tion	Core Dimensions		Min. Screen Wire Diame ter	Min. Average Sheath Thickn ess	Overall Diameter		Weight	Conductor Resistance	Insulation Resistance
  											EI 110	EI 106 /7/8/9
  			Min.	Max.			min.	max.		20°C	20°C	20°C
  n x mm2	mm	mm	mm	mm	mm	mm	mm	mm	kg/km	Ω/km	MΩ x km	MΩ x km
  TWO CORES
  1.5	1.5	0.7	2.8	3.3	0.16	0.70	7.9	9.9	90	13.7	21.0	10.5
  2.5	1.95	0.7	3.2	3.8	0.16	0.70	8.7	10.7	120	8.21	17.2	8.6
  4	2.5	0.7	3.8	4.4	0.21	0.80	10.2	12.7	170	5.09	14.2	7.1
  6	3.0	0.7	4.2	5.0	0.21	0.80	10.9	13.6	210	3.39	12.2	6.1
  10	3.9	0.7	5.1	5.9	0.21	1.00	13.4	16.6	320	1.95	9.8	4.9
  16	5.0	0.7	6.1	7.2	0.26	1.00	16.0	19.8	470	1.24	7.9	3.9
  25	6.4	0.9	7.8	9.1	0.26	1.20	19.8	24.6	690	0.795	7.3	3.6
  35	7.7	0.9	9.0	10.6	0.31	1.40	22.8	27.9	940	0.565	6.7	3.3
  50	9.2	1.0	10.6	12.4	0.31	1.40	26.4	32.3	1260	0.393	6.3	3.1
  THREE CORES
  1.5	1.5	0.7	2.8	3.3	0.16	0.70	8.4	10.4	120	13.7	21.0	10.5
  2.5	1.95	0.7	3.2	3.8	0.16	0.70	9.2	11.4	160	8.21	17.2	8.6
  4	2.5	0.7	3.8	4.4	0.21	0.80	10.8	13.3	230	5.09	14.2	7.1
  6	3.0	0.7	4.2	5.0	0.21	0.80	11.6	14.3	300	3.39	12.2	6.1
  10	3.9	0.7	5.1	5.9	0.26	1.00	14.4	18.0	500	1.95	9.8	4.9
  16	5.0	0.7	6.1	7.2	0.26	1.20	17.4	21.3	680	1.24	7.9	3.9
  25	6.4	0.9	7.8	9.1	0.26	1.20	21.3	26.1	970	0.795	7.3	3.6
  35	7.7	0.9	9.0	10.6	0.31	1.40	24.5	29.8	1330	0.565	6.7	3.3
  50	9.2	1.0	10.6	12.4	0.31	1.60	28.3	34.6	1820	0.393	6.3	3.1
  FOUR CORES
  1.5	1.5	0.7	2.8	3.3	0.16	0.70	9.1	11.3	150	13.7	21.0	10.5
  2.5	1.95	0.7	3.2	3.8	0.21	0.80	10.4	12.9	220	8.21	17.2	8.6
  4	2.5	0.7	3.8	4.4	0.21	0.80	11.8	14.5	290	5.09	14.2	7.1
  6	3.0	0.7	4.2	5.0	0.21	1.00	13.1	16.1	400	3.39	12.2	6.1
  10	3.9	0.7	5.1	5.9	0.26	1.00	15.9	19.5	640	1.95	9.8	4.9
  16	5.0	0.7	6.1	7.2	0.26	1.20	19.3	23.6	860	1.24	7.9	3.9
  25	6.4	0.9	7.8	9.1	0.31	1.40	24.0	29.3	1290	0.795	7.3	3.6
  3x35+25	7.7/6.4	0.9/0.9	9.0/7.8	10.6/9.1	0.31	1.4	26.9	32.9	1910	0.565/0.795	6.7	3.3
  3x50+25	9.2/6.4	1.0/0.9	10.6/7.8	12.4/9.1	0.31	1.6	31.5	38.2	2560	0.393/0.795	6.3	3.1

• (a) = for information, indicative only

Corona Resistant	Highly Flexible	UV Resistant	Ozone Resistant	Abrasion Retardant	Cold- resistant

Resistance To Soldering Heat	Acid&Alkaline Resistant	IRM 903 Fuel Oil Resistant	IRM 902 Mineral Oil Resistant	Fire Retardant NF C32-070-2.2(C2) IEC60332-3-24/EN50266-2-4	Flame Retardant NF C32-070-2.1(C1) IEC60332-1-2/EN50265-2-1

Low Toxicity NF X70-100/NF F63 808 TM1-04/BS 6853	Low Corrosivity IEC60754-2/EN50267-2-2/3 NF C32-074/VDE 0472-813	Low Smoke Emission IEC 61034-2 / EN 50268-2 NF C32-073/VDE 0472-816	Zero Halogen IEC 60754-1/EN 50267-2-1 NF C32-074//VDE 0472-815
