EN 50264 Medium Wall Power & Control Cable
- FIREROL Medium Wall Single Core Unsheathed Cables 0.6/1 kV or 1.8/3 kV
EN 50264-3-1 (FRL-MW-1SU, FRL-MW-3SU)
APPLICATION
- -Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
- -Used in control,lauxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.
Construction :
-
Conductor Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5 Insulation LSZH elastomeric compound as defined in EN 50264-1 (EI 106 to EI 109) -

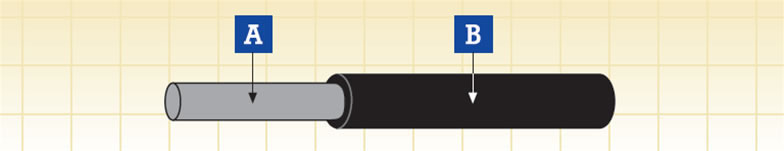

A. Conductor B. Insulation
Electrical & Mechanical Properties :
-
Nominal Voltage 0.6/1 kV or 1.8/3 kV Maximum Conductor Temperature 90°C ( fixed installation ) Minimum Permissible Ambient Temperature -25°C/-40°C ( fixed installation ) Bending Radius 3 x Overall Diameter (D<12mm); 4 x Overall Diameter (D>12mm)
Chemical & Environmental Properties :
-
EN 60684-2 No fluorine EN 50305; EN 60811-2-1 Resistance to mineral oil & fuel oil, acid & alkali EN 50305 Resistance to ozone
Fire Performance for rolling stock application :
-
EN 50306-2 Hazard levels HL1, HL2/HL3, HL4 DIN 5510-2 Protection level 1/2/3/4 BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II NF F 16-101 F0 EN45545-2 R15 Interior/ R16 Exterior HL1, HL2, HL3
Fire Performance in General :
-
EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulated wire or cable EN 50266-2-4 + EN 50305; IEC 60332-3-24;
NF C 32-070 2.2 (C1); VDE 0472 Teil 804Vertical flame spread of vertically mounted bunched wires or cables EN 50268-2; IEC 61034-2; NF C 32-073 ;
NF C 20-902; NF F 16 101; VDE 0472 Teil 816Low Smoke Emission EN 50267-2-1; IEC 60754-1; NF C 32-074;
NF C 20-454; VDE 0472 Teil 815Halogen Free EN 50267-2-2/3; IEC 60754-2; NF C 32-074;
NF C 20-453; VDE 0472 Teil 813
Low Corrosivity (Acidity & Conductivity) EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 Low Toxicity NF F 63 808; BS6853; NF F 16 101 Smoke index EN45545 -2 Requirement for fire behavior of materials & components R15/R16
FRL-MW-1SU 0.6/1 kV :
-
Nominal
Cross-Sectional
AreaConductor
Diameter
(a)Min. Mean
Thickness
of InsulationOverall
DiameterWeight Conductor
ResistanceInsulation Resistance min max 20℃ 20℃ 90℃ mm2 mm mm mm mm kg/km Ω/km MΩ x km MΩ x km 1.0 1.25 0.6 2.4 2.8 10 20 11.4 0.114 1.5 1.5 0.7 2.8 3.3 20 13.7 11.0 0.110 2.5 1.95 0.7 3.2 3.8 30 8.21 9.1 0.091 4 2.5 0.7 3.8 4.4 50 5.09 7.5 0.075 6 3.0 0.7 4.2 5.0 60 3.39 6.5 0.065 10 3.9 0.7 5.1 5.9 110 1.95 5.2 0.052 16 5.0 0.7 6.1 7.2 160 1.24 4.2 0.042 25 6.4 0.9 7.8 9.1 240 0.795 4.1 0.041 35 7.7 0.9 9.0 10.6 330 0.565 3.5 0.035 50 9.2 1.0 10.6 12.4 460 0.393 3.3 0.033 70 11.0 1.1 12.5 14.6 660 0.277 3.0 0.030 95 12.5 1.1 13.9 16.3 860 0.210 2.7 0.027 120 14.2 1.2 15.7 18.4 1080 0.164 2.7 0.027 150 15.8 1.4 17.6 20.6 1370 0.132 2.7 0.027 185 17.5 1.6 19.6 22.9 1690 0.108 2.6 0.026 240 20.1 1.7 22.2 26.0 2230 0.0817 2.6 0.026 300 22.5 1.8 24.6 28.8 2780 0.0654 2.4 0.024 400 25.8 2.0 28.1 32.9 3740 0.0495 2.4 0.024
FRL-MW-3SU 1.8/3 kV :
-
Nominal
Cross-Sectional
AreaConductor
Diameter
(a)Min. Mean
Thickness
of InsulationOverall
DiameterWeight Conductor
ResistanceInsulation Resistance min max 20℃ 20℃ 90℃ mm2 mm mm mm mm kg/km Ω/km MΩ x km MΩ x km 1.5 1.5 2.0 5.3 6.2 50 13.7 21.0 0.210 2.5 1.95 2.0 5.7 6.7 60 8.21 18.0 0.180 4 2.5 2.0 6.2 7.3 80 5.09 15.5 0.155 6 3.0 2.0 6.7 7.8 100 3.39 13.7 0.137 10 3.9 2.0 7.5 8.8 150 1.95 11.5 0.115 16 5.0 2.0 8.6 10.0 220 1.24 9.5 0.095 25 6.4 2.0 9.9 11.6 290 0.795 7.9 0.079 35 7.7 2.0 11.1 13.0 390 0.565 6.8 0.068 50 9.2 2.0 12.5 14.6 530 0.393 5.9 0.059 70 11.0 2.0 14.2 16.6 720 0.277 5.0 0.050 95 12.5 2.2 16.0 18.7 940 0.210 4.5 0.045 120 14.2 2.2 17.6 20.6 1160 0.164 4.0 0.040 150 15.8 2.2 19.1 22.3 1440 0.132 3.7 0.037 185 17.5 2.4 20.9 24.4 1760 0.108 3.4 0.034 240 20.1 2.4 23.7 27.5 2350 0.0817 3.0 0.030 300 22.5 2.4 25.6 30.1 2820 0.0654 2.7 0.027 400 25.8 2.6 29.2 34.2 3730 0.0495 2.4 0.024 - (a) = for information, indicative only
 |
 |
 |
|
 |
 |
Impact Resistant |
Highly Flexible |
UV Resistant |
Ozone Resistant | Abrasion Retardant |
Cold- resistant |
|
 |
 |
|
 |
 |
Resistance To Soldering Heat |
Acid&Alkaline Resistant |
IRM 903 Fuel Oil Resistant |
IRM 902 Mineral Oil Resistant |
Fire Retardant NF C32-070-2.2(C2) IEC60332-3-24/EN50266-2-4 |
Flame Retardant NF C32-070-2.1(C1) IEC60332-1-2/EN50265-2-1 |
 |
|
|
 |
Low Toxicity NF X70-100/NF F63 808 TM1-04/BS 6853 |
Low Corrosivity IEC60754-2/EN50267-2-2/3 NF C32-074/VDE 0472-813 |
Low Smoke Emission IEC 61034-2 / EN 50268-2 NF C32-073/VDE 0472-816 |
Zero Halogen IEC 60754-1/EN 50267-2-1 NF C32-074//VDE 0472-815 |
