EN 50264 Standard Wall Power & Control Cable
- FIREROL Standard Wall Multi Core Overall Screened & Fire Resistant Cables 300/500 V or 0.6/1 kV
EN 50264-2-2 (FRL-SW-05M-OS-AS+-PH15/30/60, FRL-SW-1M-OS-AS+--PH15/30/60)
APPLICATION
- -Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
- -Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.
Construction :
-
Conductor Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5 Insulation Mica tape+LSZH elastomeric compound as defined in EN 50264-1 (EI 101 to EI 105) Overal screen Tinned annealed copper wires Outer sheath LSZH elastomeric compound as defined in EN 50264-1 (EM 101 to EM 104) -

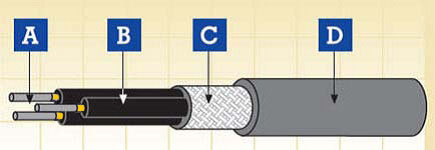

A. Conductor B. Insulation C. Screen D.Sheath
Electrical & Mechanical Properties :
-
Nominal Voltage 300/500 V or 0.6/1 kV Maximum Conductor Temperature 90°C ( fixed installation ) Minimum Permissible Ambient Temperature -25°C/-40°C ( fixed installation ) Bending Radius 10 x Overall Diameter
Chemical & Environmental Properties :
-
EN 60684-2 No fluorine EN 50305; EN 60811-2-1 Resistance to mineral oil & fuel oil, acid & alkali EN 50305 Resistance to ozone
Fire Performance for rolling stock application :
-
EN 50306-2 Hazard levels HL1, HL2/HL3, HL4 DIN 5510-2 Protection level 1/2/3/4 BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II NF F 16-101 F0 EN45545-2 R15 Interior/ R16 Exterior HL1, HL2, HL3 EN 50200: 2006 PH15, PH30, PH60
Fire Performance in General :
-
EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulated wire or cable EN 50266-2-4 + EN 50305; IEC 60332-3-24;
NF C 32-070 2.2 (C1); VDE 0472 Teil 804Vertical flame spread of vertically mounted bunched wires or cables EN 50268-2; IEC 61034-2; NF C 32-073 ;
NF C 20-902; NF F 16 101; VDE 0472 Teil 816Low Smoke Emission EN 50267-2-1; IEC 60754-1; NF C 32-074;
NF C 20-454; VDE 0472 Teil 815Halogen Free EN 50267-2-2/3; IEC 60754-2; NF C 32-074;
NF C 20-453; VDE 0472 Teil 813
Low Corrosivity (Acidity & Conductivity) EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 Low Toxicity NF F 63 808; BS6853; NF F 16 101 Smoke index IEC60331-21 The circuit integrity test under fire of cables rated 0.6/1.0kV and below EN 50200:2006 Resistance to fire of unprotected small cable for use in emergency circuits.5 classifications are defined: PH 15,30,60, or 90(15,30,60, 90 or 120mins). EN45545-2 Requirement for fire behavior of materials & components R15/R16
FRL-SW-05M-OS-AS+ 300/500 V :
-
Number And Nominal Cross-Sectional Area(a) Conductor
Diameter
(b)Min.
Mean
Thickness
of
Insulation
Diameter of Core(b) Min Wire
Diameter
of ScreenMin.
Mean
Thickness
ofSheath
Overall
DiameterWeight Maximum
Conductor
ResistanceInsulation Resistance EI 105 EI 101-
EI 104Min Max Min Max 20℃ 20℃ 20℃ n x mm2 mm mm mm mm mm mm mm mm kg/km Ω/km MΩ x km MΩ x km 2x1 0.6 2.7 3.1 0.16 1.4 8.3 9.8 129 20.0 140 70 4x1 0.6 2.7 3.1 0.16 1.4 9.2 10.9 188 20.0 140 70 7x1 0.6 2.7 3.1 0.16 1.4 10.6 12.5 275 20.0 140 70 9x1 0.6 2.7 3.1 0.21 1.4 12.7 14.9 360 20.0 140 70 12x1 1.25 0.6 2.7 3.1 0.21 1.4 13.5 15.9 445 20.0 140 70 19x1 0.6 2.7 3.1 0.26 1.5 15.9 18.7 665 20.0 140 70 24x1 0.6 2.7 3.1 0.26 1.6 18.3 21.5 832 20.0 140 70 32x1 0.6 2.7 3.1 0.26 1.6 19.9 23.4 1043 20.0 140 70 37x1 0.6 2.7 3.1 0.26 1.7 20.9 24.5 1181 20.0 140 70 40x1 0.6 2.7 3.1 0.26 1.7 21.6 25.4 1263 20.0 140 70 4x1.5 1.5 0.7 3.0 3.5 0.16 1.4 10.3 12.1 244 13.7 120 60 7x1.5 0.7 3.0 3.5 0.21 1.4 12.1 14.3 380 13.7 120 60 9x1.5 0.7 3.0 3.5 0.21 1.4 14.3 16.8 476 13.7 120 60 12x1.5 0.7 3.0 3.5 0.21 1.5 16.0 18.8 604 13.7 120 60 19x1.5 0.7 3.0 3.5 0.26 1.5 18.0 21.1 895 13.7 120 60 24x1.5 0.7 3.0 3.5 0.26 1.6 20.9 24.5 1120 13.7 120 60 32x1.5 0.7 3.0 3.5 0.26 1.7 22.9 26.9 1430 13.7 120 60 37x1.5 0.7 3.0 3.5 0.26 1.7 23.8 27.9 1610 13.7 120 60 4x2.5 1.95 0.8 3.6 4.2 0.21 1.4 12.0 14.2 330 8.21 90 45 7x2.5 0.8 3.6 4.2 0.21 1.4 13.9 16.4 500 8.21 90 45 9x2.5 0.8 3.6 4.2 0.26 1.5 17.0 20.0 670 8.21 90 45 12x2.5 0.8 3.6 4.2 0.26 1.5 18.2 21.4 830 8.21 90 45 19x2.5 0.8 3.6 4.2 0.26 1.6 21.3 24.9 1200 8.21 90 45 24x2.5 0.8 3.6 4.2 0.26 1.8 24.9 28.9 1560 8.21 90 45 - (a)= One earth conductor (green/yellow) can be included upon request
(b) = For information,indicative only
FRL-SW-1M-OS-AS+ 0.6/1 kV :
-
Number And Nominal Cross-Sectional Area(a) Conductor
Diameter
(b)Min.
Mean
Thickness
of
Insulation
Diameter of Core(b) Min Wire
Diameter
of ScreenMin.
Mean
Thickness
ofSheath
Overall
DiameterWeight Maximum
Conductor
ResistanceInsulation Resistance EI 105 EI 101-
EI 104Min Max Min Max 20℃ 20℃ 20℃ mm2 mm mm mm mm mm mm mm mm kg/km Ω/km MΩ x km MΩ x km TWO CORES 1.5 1.5 0.8 3.3 3.8 0.16 1.4 9.5 11.2 166 13.7 150 75 2.5 1.95 0.8 3.7 4.2 0.16 1.4 10.4 12.2 207 8.21 130 65 4 2.5 0.8 4.2 4.9 0.21 1.4 11.7 13.7 273 5.09 110 55 6 3.0 0.9 4.9 5.7 0.21 1.4 13.1 15.4 351 3.39 90 45 10 3.9 1.1 6.1 7.1 0.21 1.5 15.7 18.5 515 1.95 85 45 16 5.0 1.1 7.5 8.8 0.26 1.5 18.1 21.2 710 1.24 70 35 25 6.4 1.3 8.9 10.3 0.26 1.7 21.8 25.6 1035 0.795 65 35 35 7.7 1.3 10.5 11.8 0.31 1.8 24.6 28.9 1339 0.565 60 30 50 9.2 1.5 11.9 13.8 0.31 1.9 28.4 33.3 1810 0.393 55 30 THREE CORES 1.5 1.5 0.8 3.3 3.8 0.16 1.4 10.0 11.7 205 13.7 150 75 2.5 1.95 0.8 3.7 4.2 0.16 1.4 10.9 12.8 261 8.21 130 65 4 2.5 0.8 4.2 4.9 0.21 1.4 12.2 14.4 349 5.09 110 55 6 3.0 0.9 4.9 5.7 0.21 1.4 13.8 16.3 457 3.39 90 45 10 3.9 1.1 6.1 7.1 0.26 1.5 16.9 19.9 704 1.95 85 45 16 5.0 1.1 7.5 8.8 0.26 1.6 19.3 22.6 960 1.24 70 35 25 6.4 1.3 8.9 10.3 0.26 1.7 23.1 27.1 1400 0.795 65 35 35 7.7 1.3 10.5 11.8 0.31 1.8 26.2 30.8 1827 0.565 60 30 50 9.2 1.5 11.9 13.8 0.31 2.0 30.5 35.7 2513 0.393 55 30 FOUR CORES 1.5 1.5 0.8 3.3 3.8 0.16 1.4 10.7 12.6 248 13.7 150 75 2.5 1.95 0.8 3.7 4.2 0.21 1.4 12.0 14.2 335 8.21 130 65 4 2.5 0.8 4.2 4.9 0.21 1.4 13.3 15.6 430 5.09 110 55 6 3.0 0.9 4.9 5.7 0.21 1.4 15.1 17.7 570 3.39 90 45 10 3.9 1.1 6.1 7.1 0.26 1.6 18.6 21.9 896 1.95 85 45 16 5.0 1.1 7.5 8.8 0.26 1.7 21.3 24.9 1200 1.24 70 35 25 6.4 1.3 8.9 10.3 0.31 1.8 25.8 30.2 1815 0.795 65 35 3X35+25 7.7/6.4 1.3/1.3 10.5/8.9 11.8/10.3 0.31 1.9 30.2 35.4 2200 0.565/0.795 60 30 3X50+25 9.2/6.4 1.5/1.3 11.9/8.9 13.8/10.3 0.31 2.1 35.1 41.1 2600 0.393/0.795 55 30 - (a)= For information,indicative only
 |
 |
 |
|
 |
 |
Corona Resistant |
Highly Flexible |
UV Resistant |
Ozone Resistant | Abrasion Retardant |
Cold- resistant |
|
 |
 |
|
 |
 |
Resistance To Soldering Heat |
Acid&Alkaline Resistant |
IRM 903 Fuel Oil Resistant |
IRM 902 Mineral Oil Resistant |
Fire Retardant NF C32-070-2.2(C2) IEC60332-3-24/EN50266-2-4 |
Flame Retardant NF C32-070-2.1(C1) IEC60332-1-2/EN50265-2-1 |
 |
|
|
 |
Low Toxicity NF X70-100/NF F63 808 TM1-04/BS 6853 |
Low Corrosivity IEC60754-2/EN50267-2-2/3 NF C32-074/VDE 0472-813 |
Low Smoke Emission IEC 61034-2 / EN 50268-2 NF C32-073/VDE 0472-816 |
Zero Halogen IEC 60754-1/EN 50267-2-1 NF C32-074//VDE 0472-815 |
