EN 50306 Thin Wall Instrumentation & Control Cable

• FIREROL Thin Wall Single Core Screened & Sheathed Cables 300/500 V
  EN 50306-3 (FRL-TW-05S-OS)

APPLICATION

• -Used as signal and control cable for protected installations inside and outside of rail and transport vehicles, where space and weight are an important factor.
• -Used in cable harnesses, switchboards and control panels, driver desks etc.

Construction :

• Conductor	Tinned annealed copper wires as defined in EN 50306-2
  Insulation	LSZH special compound
  Overal screen	Tinned annealed copper wires
  Outer sheath	LSZH special compound (S1 & S2)

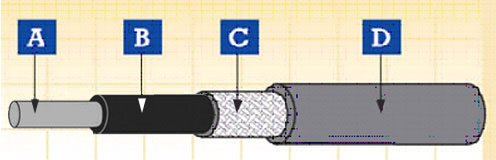

• A. Conductor             B. Insulation             C. Screen             D.Sheath

Electrical & Mechanical Properties :

• Nominal Voltage	300/500 V
  Maximum Conductor Temperature	120°C /150°C (fixed installation)
  Minimum Permissible Ambient Temperature	-25/-40°C (fixed installation)
  Bending Radius	10 x Overall Diameter

Chemical & Environmental Properties :

• EN 60684-2	No fluorine
  EN 50305; EN 60811-2-1	Resistance to mineral oil & fuel oil, acid & alkali
  EN 50305	Resistance to ozone

Fire Performance for rolling stock application :

• EN 50306-2	Hazard levels HL1, HL2/HL3, HL4
  DIN 5510-2	Protection level 1/2/3/4
  BS 6853	Interior use 1a, 1b, II; Exterior use 1a, 1b, II
  NF F 16-101	F0
  EN45545-2	R15 Interior/ R16 Exterior HL1, HL2, HL3

Fire Performance in General:

• EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)	Vertical flame propogation for a single insulated wire or cable
  EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804	Vertical flame spread of vertically mounted bunched wires or cables
  EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816	Low Smoke Emission
  EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815	Halogen Free
  EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813	Low Corrosivity (Acidity & Conductivity)
  EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853	Low Toxicity
  NF F 63 808; BS6853; NF F 16 101	Smoke index
  EN45545-2	Requirement for fire behavior of materials & components R15/R16

FRL-TW-05S-OS 300/500 V :

• Number of Cores and Nominal Cross Section	Minimum Thickness of Sheath at any Point	Overall Diameter		Weight
  		min	max
  n x mm2	mm	mm	mm	kg/km
  1 x 0.5	0.20	2.3	2.8	10
  1 x 0.75	0.20	2.5	3.0	20
  1 x 1	0.20	2.7	3.2	25
  1 x 1.5	0.20	3.1	3.6	30
  1 x 2.5	0.20	3.6	4.4	40

Impact Resistant	Highly Flexible	UV Resistant	Ozone Resistant	Abrasion Retardant	Cold- resistant

Resistance To Soldering Heat	Acid&Alkaline Resistant	IRM 903 Fuel Oil Resistant	IRM 902 Mineral Oil Resistant	Fire Retardant NF C32-070-2.2(C2) IEC60332-3-24/EN50266-2-4	Flame Retardant NF C32-070-2.1(C1) IEC60332-1-2/EN50265-2-1

Low Toxicity NF X70-100/NF F63 808 TM1-04/BS 6853	Low Corrosivity IEC60754-2/EN50267-2-2/3 NF C32-074/VDE 0472-813	Low Smoke Emission IEC 61034-2 / EN 50268-2 NF C32-073/VDE 0472-816	Zero Halogen IEC 60754-1/EN 50267-2-1 NF C32-074//VDE 0472-815
