HDMI Bulk Cable
- (5 Pairs + 4 Conductors)
Construction

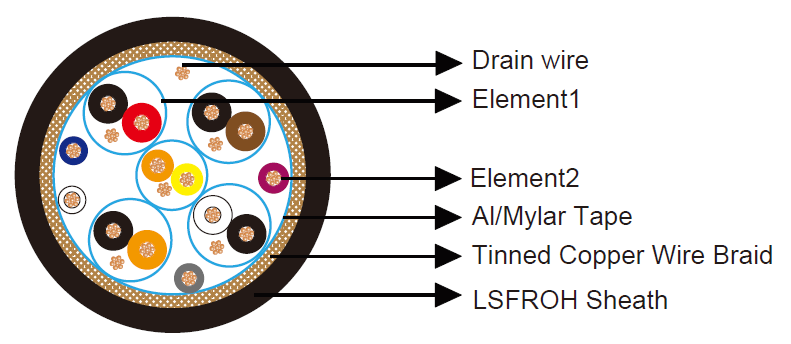

Element 1:5PR×30AWG(Cu/Foam Skin/Individual Al-mylar Screen+ TC Drain Wire)
-
Conductors Stranded tinned copper wires, 30AWG(7/38AWG) Insulation Foam skin. Thickness 0.235mm. Outer diameter 0.76+0.05mm Core Identification 1PR=Black/White; 2PR=Black/Brown, 3PR=Black/red; 4PR=Black/Orange Twisting The cores shall twisted together in pair, the lay between each twist shall not exceed 100 mm Individual Shield Aluminum/ mylar laminated tape applied with the metallic side down in electrical contact with a 30AWG tinned copper drain wire (7 strands formation).
A 23 micron mylar tape is applied over the screening tape with a minimum 25% overlap.
-
Conductors Stranded tinned copper wires, 30AWG(7/38AWG) Insulation PP. Thickness 0.13mm. Outer diameter 0.55+0.05mm Insulation Color Blue, Green, Violet, Grey and White -
Overall Screen Stranded tinned copper wires, 30AWG(7/38AWG) Braid Shield Braid of tinned copper wire. Coverage ≥ 90% Outer Sheath LSFROH elastomeric sheath,Thickness 1.0mm. Outer diameter 6.5+0.5mm,
other materail is optional
Sheath Color Black or as per the client’s requirement -
Rated Voltage 30V Max conductor resistance at 20°C ≤376 Ohm/Km Min insulation resistance ≥100M Ohm/m Spark test Min. AC 500V/0.15second Nom. differential impedance 100+5 Ohm -
EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulated wire or cable EN 50266-2-4 + EN 50305; IEC 60332-3-24;
NF C 32-070 2.2 (C1); VDE 0472 Teil 804Vertical flame spread of vertically mounted bunched wires or cables EN 50268-2; IEC 61034-2; NF C 32-073 ;
NF C 20-902; NF F 16 101; VDE 0472 Teil 816Low Smoke Emission EN 50267-2-1; IEC 60754-1; NF C 32-074;
NF C 20-454; VDE 0472 Teil 815Halogen Free EN 50267-2-2/3; IEC 60754-2; NF C 32-074;
NF C 20-453; VDE 0472 Teil 813
Low Corrosivity (Acidity & Conductivity) EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 Low Toxicity NF F 63 808; BS6853; NF F 16 101 Smoke index EN45545-2 Requirement for fire behavior of materials & components R15/R16
Element 2: 4C×30AWG(7/38AWG) Stranded TC/PP
Element Assembly
Physical Properties:
Temperature rating: -25°C to +80°C
Minimum bending radius: 3 x Overall Diameter
Electrical Properties:
Fire Performance in General :
Fire Performance Relating to Rolling Stock Application
DIN 5510-2
BS 6853
NF F16 101
NF F 63 808
EN 45545-2
 |
 |
 |
|
 |
 |
Corona Resistant |
Highly Flexible |
UV Resistant |
Ozone Resistant | Abrasion Retardant |
Cold- resistant |
|
 |
 |
|
 |
 |
Resistance To Soldering Heat |
Acid&Alkaline Resistant |
IRM 903 Fuel Oil Resistant |
IRM 902 Mineral Oil Resistant |
Fire Retardant NF C32-070-2.2(C2) IEC60332-3-24/EN50266-2-4 |
Flame Retardant NF C32-070-2.1(C1) IEC60332-1-2/EN50265-2-1 |
 |
|
|
 |
Low Toxicity NF X70-100/NF F63 808 TM1-04/BS 6853 |
Low Corrosivity IEC60754-2/EN50267-2-2/3 NF C32-074/VDE 0472-813 |
Low Smoke Emission IEC 61034-2 / EN 50268-2 NF C32-073/VDE 0472-816 |
Zero Halogen IEC 60754-1/EN 50267-2-1 NF C32-074//VDE 0472-815 |
